DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

Place of Origin : Shanghai, China

Brand Name : DIKAI

Certification : CE; ISO 9001

MOQ : 1

Price : $500-600

Print Area : 40mm * 3lines

Print Speed : max 900PPM, 60 meters/ minute

Print Lines : max 3 lines, 20 characters/line

Font Size : Height 3.5mm * 1.5, 2, 2.5mm (Width)

Ink Roll Size : φ36*32, φ36*40mm (suggested)

Power Supply : AC 220±10V, 50/60Hz, 130W, 2A

Working Temperature : 4-40℃, 10% - 95% humidity

Voltage : 130W,2A fuse

Dimensions : 205mm*162.5mm*124mm

Weight : 2.2KG

Print Contents : MFG/ EXP date, lot number, serial number, etc

Type Sizes : T-Type:3.5mm*1.5T,2.0T,2.5T(W)

Core Components : PC Board

Driven Type : Electric

Contact Now

Product Overview

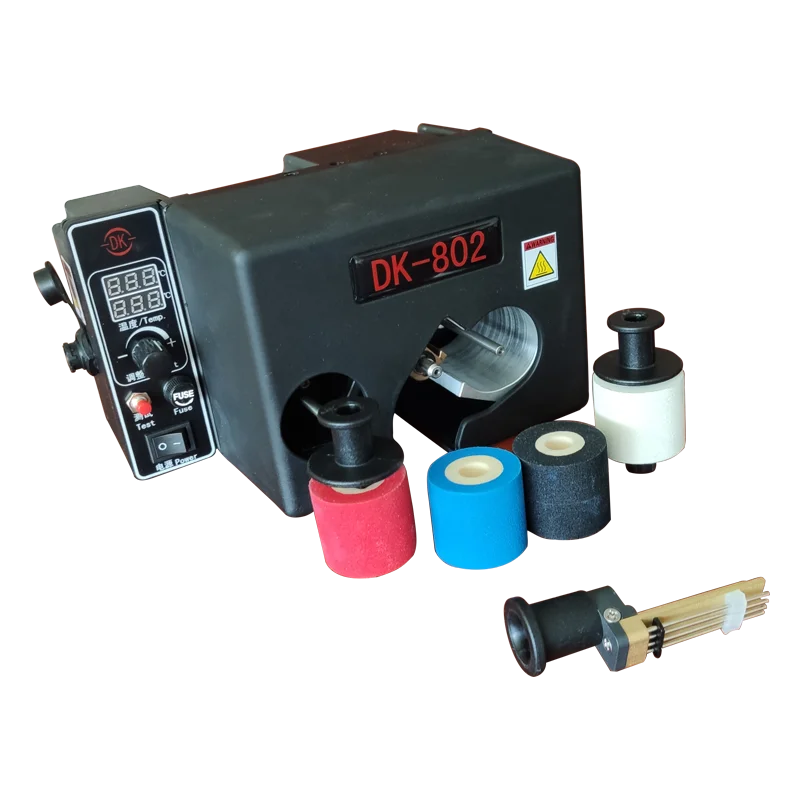

DK-802 Intermittent Ink roll Coder

DK-802 Intermittent Ink roll Coder was developed by Dikai R&D based on old model DK-801, DK-802 intermittent ink roll coder combines print head and control box to decrease the cost greatly. It can be combined with intermittent packaging machine to print date, lot number, etc. With speed up to 150 ppm, it can meet requirement of almost all of the intermittent packaging machines. Besides, compared with intermittent hot stamp coder, its consumable of hot ink roll can cut the cost a lot.
Features
* LED Display

* Stable Printing

* Less Mechanism Consume

* Low cost of consumables

* Compact Size

* Simple Installation

* Easy Operation

DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

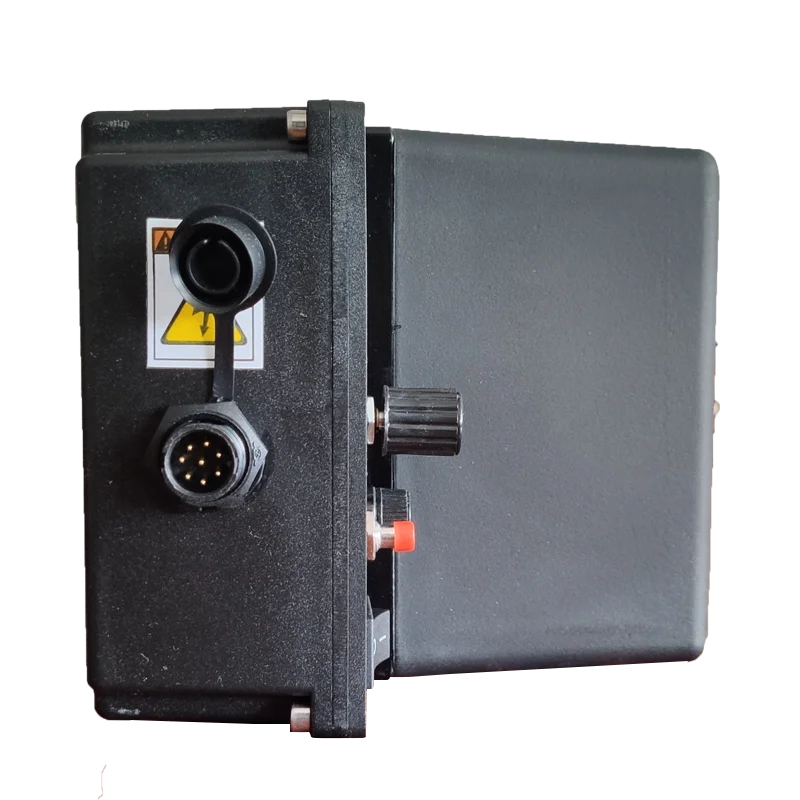

Right elevation
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
Left elevation
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

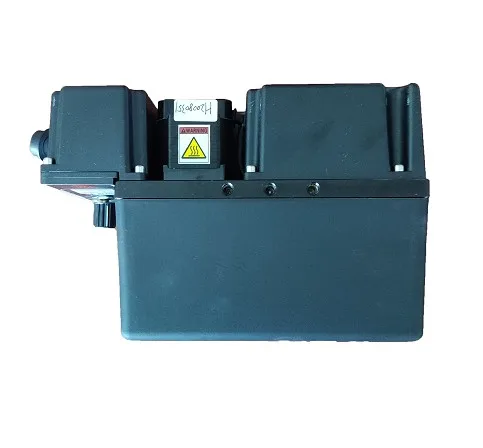

Front elevation
Product Specification
Print Area
40mm * 3lines
Print Speed
max 150 prints/minute
Print Lines
max 3 lines, 20 characters/line
Font Size
Height 3.5mm * 1.5, 2, 2.5mm (Width)
Controller
LED Display
Ink Roll Size
φ36*32, φ36*40mm (suggested)
Power Supply
AC 220±10V, 50/60Hz, 130W, 2A
Working Temperature
4-40℃, 10% - 95% humidity
Attention: The prices shown on Alibaba are not final prices, please consult us for proper solutions for you.
Packaging & Shipping
The carton package is suitable for sea, air, fast courier shipping.
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
After Sales Service
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding

Technical Supports

--R&D supports;

--Operation Manual Guidance

--Within 24-hour professional online supports

--Video supports

--Possible onsite supports...
Related Products
Company Introduction
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
Shanghai Dikai Coding Industry Co.,Ltd

Shanghai Dikai Coding Industry Co., Ltd was founded in 1995, and Dikai has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables like TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, Ribbon, etc.
Our headquarters is located in Shanghai, China, we have 16 branches offices and many authorized distributors in domestic, serving more 4,000 end users, over 200 packing machinemanufacturers. Our products have been exported to more than 100 countries and regions since 2006.

DIKAI Vision: To be renowned ID system integrator in the world
DIKAI Values: Customer's benefit comes first
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
Office
Inside Company
Warehouse
Factory
1. 5S management 2. Strict quality control
3. Clear operate instructions 4. Regular training of workers

DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding





TTO Workshop

Over 1000 sets per month
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding




Ink Roll Coder Workshop

Over 1500 sets per month
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding





Laser Workshop

Over 80 sets per month
Certification
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
CE Certification
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
ISO Certification
Exhibition
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
Allpack Indonesia
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
Andina Pack
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
ICE CREAM CHINA
Open Cooperation
DIKAI DK-802 Intermittent Ink Roll Coder with Max 150 Prints/Minute, Max 3 Lines, and 20 Characters/Line for High-Speed Coding
FAQ
1.Why choose Dikai?
-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customers' different needs in coding and marking area.

2.What’s the regular lead time for Dikai Products?
--Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.

3.What's the warranty of Dikai goods?
--Regularly 12 months after leaving Dikai Warehouse.

4.How about your after-sales service?
--For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
