DIKAI DK-1500 High Speed Ink Roll Coder with 900 PPM and 60 meters/minute for Automatic Coding at 220V

Name: DIKAI DK1500 High Speed Ink Roll Coder with 900 PPM and 60 metersminute for Automatic Coding at 220V
Brand: DIKAI
Price: 900 USD

China DIKAI DK-1500 High Speed Ink Roll Coder with 900 PPM and 60 meters/minute for Automatic Coding at 220V wholesale

Place of Origin : Shanghai, China

Brand Name : DIKAI

Certification : CE; ISO 9001

MOQ : 1

Price : $900-1,200

Print Area : T-Type: ≤13 lines, max 20 characters per line; R-Type: ≤10 lines, max 13 characters per line

Type Sizes : T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T; R-Type: 3.5R, 4.5R, 5.5R

Pouch Length : ≥38mm (4-up printer); ≥75mm (2-up printer)

Print Frequency : ≤300 times/min

Ink Roll Size : 36*32mm, 36*35mm, 36*40mm

Voltage : AC220+10V, 50/60Hz

Power : 140W, 2A fuse

Print Speed : max 900PPM, 60 meters/minute

Print Contents : MFG/EXP date, lot number, serial number, etc

Dimensions : Printer Unit: 94mm*100mm*166mm

Weight : Print Unit: 4KG; Controller Box: 2KG

Core Components : PC Board

Driven Type : Electric

Automatic Grade : Automatic

Max Print Speed : 1200 prints/minute

Contact Now

Product Overview

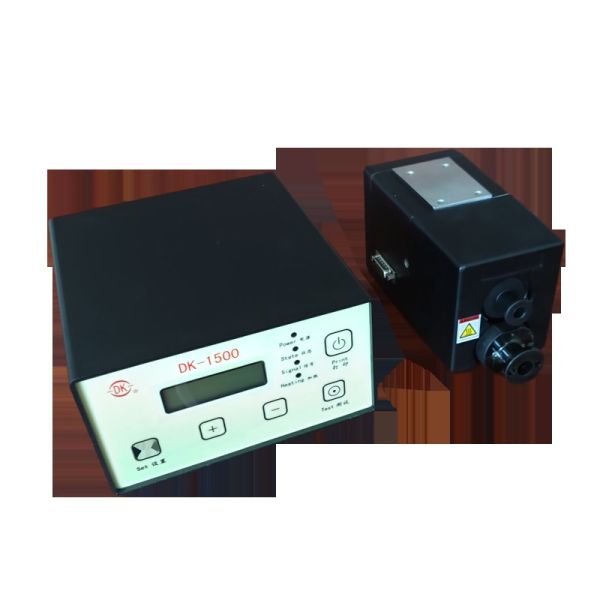

DK-1500 High Speed Hot Ink Roll Coding Machine

DK-1500 Ink Roll Coder for High Speed Application was developed by DIKAI own R&D team. It can be integrated with high speed flow packers with max print speed of 1200 prints/minute to print production date, lot number, expiry date, etc. automatically. Compact in structure, convenient in assembling and using, fast in printing with large printing cover, flexible in formatting types, and much shorter in the minimum printing distance, it has widely used in food, daily chemicals and paper, drug, seeds industries.Adopts LCD screen, greatly extend use life of the controller, even no need maintenance.

Features

High Speed

Compact Structure

Large Printing Cover

Easy Assembling and Using

Low maintenance

Widely used

Controller

Print Unit

Bracket

Product Specification

Product name	DK-1500 High Speed Hot Ink Roll Coding Machine
Print Area	T-Type(Axial):≤13lines,max20 characters per line R-Type(Radial):≤10lines,max13 characters per line
Type Sizes	T-Type:2.0T,2.5T,3.0T,2.5*7T R-Type:3.5R,4.5R,5.5R
Pouch Length	≥38mm(4-up printer) ≥75mm(2-up printer)
Print Frequency	≤300times/min
Ink Roll Required	3632mm,3635mm,36*40mm
Eletrictiy	AC220+10V,50/60Hz
Power	140W,2A fuse
Print Speed	max 900PPM, 60 meters/ minute
Print Contents	MFG/ EXP date, lot number, serial number, etc
