DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Product Categories
Shanghai Dikai Coding Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Place of Origin : Shanghai, China

Brand Name : DIKAI

Certification : CE; ISO 9001

MOQ : 1

Price : $450-600

Voltage : AC220+10V,50/60Hz

Power : 130W,2A fuse

Print Speed : max 300PPM, 35 meters/minute

Print Area : T-Type: ≤13 lines, max 20 characters; R-Type: ≤10 lines, max 13 characters

Type Sizes : T-Type: 2.0T,2.5T,3.0T,2.5*7T; R-Type: 3.5R,4.5R,5.5R

Pouch Length : ≥38mm (4-up printer), ≥75mm (2-up printer)

Ink Roll Size : 36*32mm, 36*35mm, 36*40mm

Dimensions : Printer Unit: 120*100*170mm

Weight : Print Unit: 2KG, Controller Box: 1KG

Print Frequency : ≤300 times/min

Print Contents : MFG/EXP date, lot number, serial number

Core Components : PC Board

Driven Type : Electric

Automatic Grade : Automatic

Packaging Material : Paper

Contact Now

Product Overview
DK-1100A Ink Roll Coder is an electronic continuous motion coder designed to be integrated on packing machines to print at a max speed of 300 PPM. Print area up to 13 lines so you can print MFG/ EXP date, lot number, etc on flexible packing films. Widely used in industries like food, daily chemicals, daily tissue, rice, seed, etc. Since its first launch in 2011, our cumulative sales quantity had reached 100, 000 sets in the market. It's an almost maintenance free model, largely saving your costs.
Features
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

-- Fast Speed

-- Stable Printing

-- Less Mechanism Consume

-- Compact Size

-- Simple Installation and operation
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Print Unit
Controller
Back of Controller
Products Description
Product name
DK-1100A Ink Roll Coder
Print Area
T-Type(Axial):≤13lines,max20 characters per line R-Type(Radial):≤10lines,max13 characters per line
Type Sizes
T-Type:2.0T,2.5T,3.0T,2.5*7T R-Type:3.5R,4.5R,5.5R
Pouch Length
≥38mm(4-up printer) ≥75mm(2-up printer)
Print Frequency
≤300times/min
Ink Roll Required
36*32mm,36*35mm,36*40mm
Eletrictiy
AC220+10V,50/60Hz
Power
130W,2A fuse
Print Speed
max 300PPM, 35 meters/ minute
Print Contents
MFG/ EXP date, lot number, serial number, etc
Attention: The prices shown on Alibaba are not final prices, please consult us for proper solutions for you.

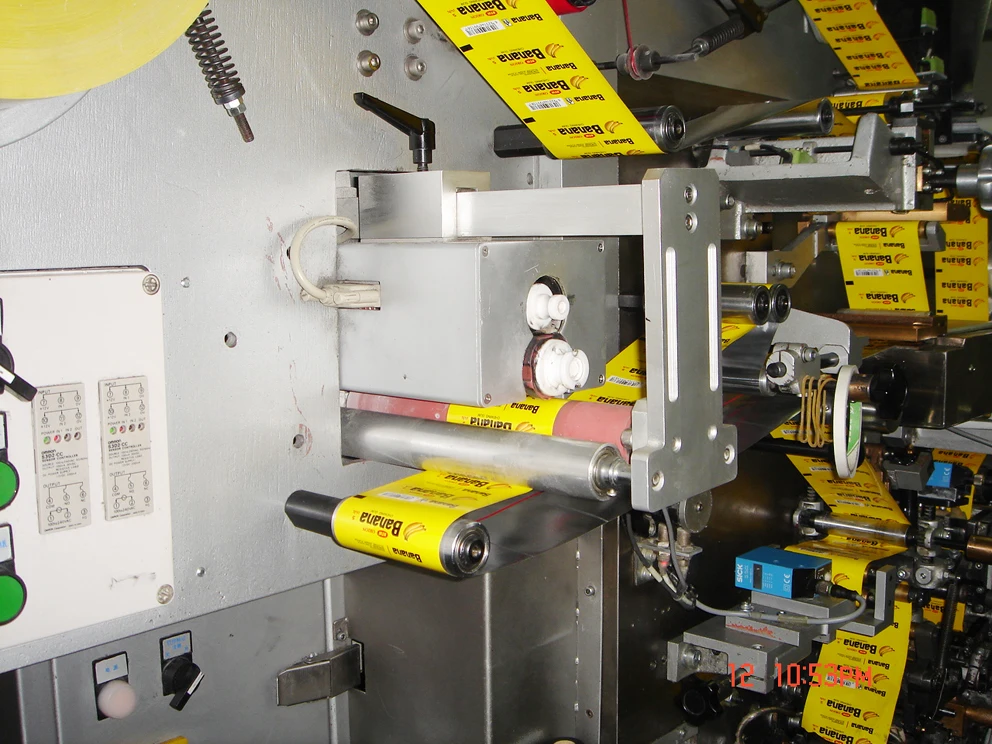

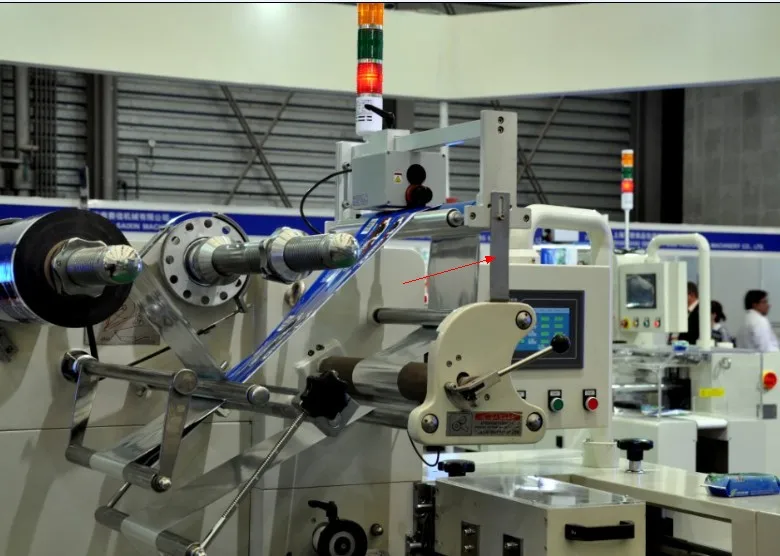

Installations
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Printing Effect
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Packaging & Shipping
The carton package is suitable for sea, air, fast courier shipping.
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
After Sales Service
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Technical Supports

--R&D supports;

--Operation Manual Guidance

--Within 24-hour professional online supports

--Video supports

--Possible onsite supports...
Related Products
Company Introduction
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Shanghai Dikai Coding Industry Co.,Ltd

Shanghai Dikai Coding Industry Co., Ltd was founded in 1995, and Dikai has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables like TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, Ribbon, etc.
Our headquarters is located in Shanghai, China, we have 16 branches offices and many authorized distributors in domestic, serving more 4,000 end users, over 200 packing machinemanufacturers. Our products have been exported to more than 100 countries and regions since 2006.

DIKAI Vision: To be renowned ID system integrator in the world
DIKAI Values: Customer's benefit comes first
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Office
Inside Company
Warehouse
Factory
1. 5S management 2. Strict quality control
3. Clear operate instructions 4. Regular training of workers

DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking





TTO Workshop

Over 1000 sets per month
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking




Ink Roll Coder Workshop

Over 1500 sets per month
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking





Laser Workshop

Over 200 sets per month
Certification
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
CE Certification
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
ISO Certification
Exhibition
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Allpack Indonesia
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
Andina Pack
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
ICE CREAM CHINA
Open Cooperation
DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking
FAQ
1.Why choose Dikai?
-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customers' different needs in coding and marking area.

2.What’s the regular lead time for Dikai Products?
--Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.

3.What's the warranty of Dikai goods?
--Regularly 12 months after leaving Dikai Warehouse.

4.How about your after-sales service?
--For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
