220V 36x32mm Hot Ink Roll Coder / Expiry Date Coding Machine 300 PPM

Name: 220V 36x32mm Hot Ink Roll Coder Expiry Date Coding Machine 300 PPM
Brand: DIKAI
Price: 1 USD

China 220V 36x32mm Hot Ink Roll Coder / Expiry Date Coding Machine 300 PPM wholesale

Brand Name : DIKAI

Model Number : DK-1100B

Place of Origin : Shanghai, China

MOQ : 1 set

Price : US $450

Payment Terms : T/T

Delivery Time : 5-8 work days

Name : DK-1100B Ink Roll Coder

Print Area : T:≤13lines,max20 R:≤10lines,max13

Type Sizes : "T-Type:2.0T,2.5T,3.0T,2.5*7T R-Type:3.5R,4.5R,5.5R"

Pouch Length : "≥38mm(4-up printer) ≥75mm(2-up printer)"

Ink Roll Required : 36*32mm,36*35mm,36*40mm

Eletricity : AC220±10V，50/60Hz

Print Speed : 300PPM, 35 meters/minute

Print Contents : MFG/EXP date, lot number, serial number

Power : 130W, 2A fuse

Weight : Print Unit:2KG, Controller Box:1KG

Contact Now

Print Batch Date Expiry Hot Ink Roller Coding Machine
Hot Ink Roll Coder

Products Description

220V 36x32mm Hot Ink Roll Coder / Expiry Date Coding Machine 300 PPM

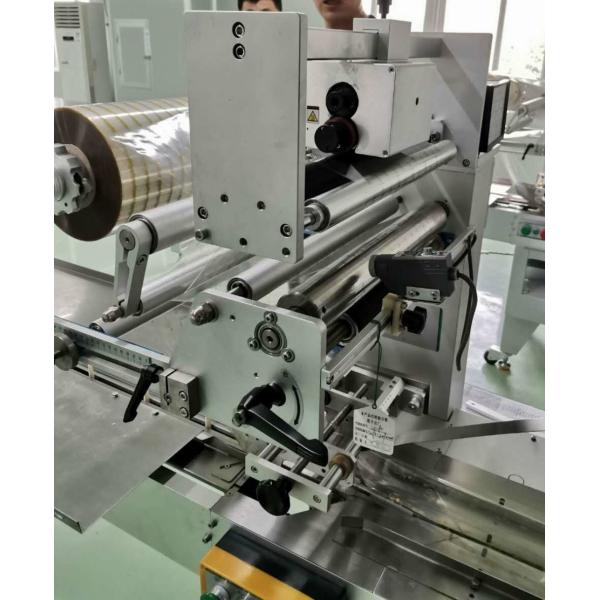

DK-1100B Ink Roll Coder is a continuous coding machine which was designed to be integrated to flow packers, continuous packing
 machines to print MFG/ EXP date, lot number, serial number with a max print speed of 300 prints/ minute, surface speed is up to 35
 meters/ minute. It's been widely used in industries like food, daily chemicals, daily tissue, medicine making machines, etc.
 Cumulative sales since 2001 had been reached 100, 000 sets, serving more than 4000+ end users like Mondelez, Pepsico, Yili Dairy, cooperating with over 200 packing machine manufacturers in China. Exporting to nearly 100 countries and regions since 2006 through our worldwide distribution network.

Main Components

Controller

Printer Unit

Bracket

Specification

Product name	DK-1100B Ink Roll Coder
Print Area	≤13lines,max20 characters/ line
Type Sizes	Standard 3.0T,2.5*7T, 3.5R (or customized size)
Pouch Length	≥38mm(4-up printer) ≥75mm(2-up printer)
Print Frequency	≤300 prints/ min
Ink Roll Required	3632mm/ 3635mm/ 36*40mm
Eletrictiy	AC220+10V,50/60Hz
Power	130W,2A fuse
Print Speed	35 meters/ minute
Print Contents	MFG/ EXP date, lot number, serial number, etc

Application

Print Sample:

Print Area < 40mm*13mm
The unit print cost of hot ink roll is 5-10 times less than that of hot stamping foil.

Consumable Picture Print area:

Axial (up to 3 Ones, 20charecters)
Type Size Axial (3.5mre1 .5T, 2.0T, 2.5T)
Ink Roll Required (mm): 4536*32mm, 36.35mm, 36.40mm

All these products are manufactured with utmost precision with the aid of advanced machinery and latest tools using the best grade raw material such as steel sheets, aluminum, iron metal, brass alloy, etc. Designed in sync with the international parameters, these products are known for the features like optimum performance, sturdy construction, accurate dimensions, reliable operations, user friendly interface, compact design and easy installation.

Print Results

Packaging & Shipping

● Standard Export Cartons with soft protection inside● Suitable for international sea, air, fast courier shipping● Package Size: 77* 33*27cm (with 500mm bracket)
● Gross Weight: 9.5kg
● Regular Lead Time: 1-2 weeks after order confirmation & payment

After Sales Service

Technical Supports

--R&D supports;
 --Operation Manual Guidance

 --Within 24-hour professional online supports

 --Video supports

 --Possible onsite supports...
